Cooling System Upgrades for Ideola's Ultra Wide Body 931
Goto page Previous  1, 2, 3, 4, 5  Next

Post new topic   Reply to topic    924Board.org Forum Index -> Performance Upgrades
View previous topic :: View next topic
Author Message
ideola



Joined: 01 Oct 2004
Posts: 15510
Location: Woodstock IL

PostPosted: Wed May 27, 2009 5:46 am    Post subject: Reply with quote

The Davies Craig gear came in while I was on my parts run last Friday:

Davies Craig Electric Booster Pump (EBP) for water-cooled turbo circuit:


Davies Craig Electric Water Pump (EWP115)


Davies Craig 12" Thermatic Fan (12V)

_________________
75 Fiat X1/9 | 80 US 931 '941' | 78 Poli-Form


Last edited by ideola on Sat Jul 18, 2009 12:13 am; edited 1 time in total
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15510
Location: Woodstock IL

PostPosted: Fri May 29, 2009 12:52 am    Post subject: Reply with quote

I'm taking a closer look at reversing the coolant flow through the head first, based on some info posted here, and also in the thermal management section of Jeff Hartman's Turbocharging Performance Handbook. Bearing in mind the following characteristics:
  • modified water pump housing
  • modified thermostat housing (NO thermostat)
  • modified rear water flange
  • modified cross-over pipe
  • heater-delete configuration (no heater core or associated plumbing)
  • Davies-Craig electric water pumps (EWP115 for main coolant circuit, EBP for turbo coolant circuit)
  • Water pump cycling will be controlled by the ECU
  • 951 style coolant reservoir
  • water-cooled bearing housing on the turbo

...here is the proposed reverse-flow configuration:

Any reason this won't work???
_________________
75 Fiat X1/9 | 80 US 931 '941' | 78 Poli-Form
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15510
Location: Woodstock IL

PostPosted: Sat May 30, 2009 10:18 pm    Post subject: Reply with quote

Bump ^^^ any feedback on the reverse flow topic?
_________________
75 Fiat X1/9 | 80 US 931 '941' | 78 Poli-Form
Back to top
View user's profile Send private message
bass gt



Joined: 02 Dec 2004
Posts: 971
Location: Johannesburg for now!!

PostPosted: Sun May 31, 2009 1:50 am    Post subject: Reply with quote

Dan,

Sorry for not getting back to you sooner, i've been on holiday in Mozambique it's tough, but someone needs to do it!!
Anyway, re the reverse flow thing. No reason at all why it won't work. in fact, i'm going to do this on my car once ready. It should result in head temps about 10 deg cooler, which really helps, as the ideal temp for a turbo engine is about 70-80 deg C.
keep us posted on your results. And if it's a no go, it's easy enough to revert to a conventional flow.

Steve
_________________
Front Wheel Drive is the Devil's work.
Back to top
View user's profile Send private message
Martijnus



Joined: 29 Dec 2006
Posts: 2019
Location: Netherlands

PostPosted: Sun May 31, 2009 3:08 am    Post subject: Reply with quote

Am I right about the following:

The stock pump pumps the coolant through the engine and the head...head has two exits, one at the front (thermostat housing) and one at the back (coolant flange).
The latter goes directly (through the metal tube on the outside of the engine) back to the pump, the thermostat housing goes also to the pump and to the radiator.

Correct?

Like the setup you designed Dan If I understand the coolant system correctly I don't see any problems too.
Only thing I noticed is that you pump coolant in the head from two sides, but normally that would be two exits so that's normal...but reversed.

Why is the head temp 10deg. lower? Because the coolant passes the head first before it goes in the block? Or is the stock system really restricting?

My head temp is always 80 deg. 85 worst case... but I'm not charging the intake
_________________
"Rule: Turbo's make torque, and torque makes fun." (C. Bell)

924 "50-jahre", 1981.
MSII/extra, LPG, ITB's, 5lug.
To be turbo'ed in a while.
Killed her at the Nurburgring, Porscheless at the moment
Back to top
View user's profile Send private message Send e-mail MSN Messenger
ideola



Joined: 01 Oct 2004
Posts: 15510
Location: Woodstock IL

PostPosted: Sun May 31, 2009 9:00 am    Post subject: Reply with quote

The normal cycle goes like this:

lower rad hose -> water pump inlet -> block -> head

From the head, it splits off and comes out the back water flange where the TTS and CLT are located, and also the split for the heater control valve, as well as the connection to the stock cross over pipe, which tees back into the lower t-stat housing. In the front, it exits the head and goes into the lower thermostat housing. When the t-stat is closed, water circulates down the t-stat bypass connection, the little short hose that connects to the water pump, and goes back down into the block and continues circulating until the t-stat opens, at which point it proceeds over to the upper rad hose.

In my case, the t-stat is removed, as I will be controlling everything via the ECU. Also, the lower t-stat housing has been modified by welding shut the bypass and cross over connections. The water pump has the guts removed, and all openings except for the inlet from the lower rad hose welded shut. My welder is making up a custom rear water flange that have a ~30mm elbow outlet, with no take-offs for heater control valve (since there won't be a heater core). The theory is that the 30mm at the rear of the head, with same size hose to replace the stock cross over pipe, will equalize flow across the front and back of the head.

Now, to explain why reverse flow is superior, I'll quote from Mr. Hartman:
On Page 217 of Turbocharging Performance Handbook, Jeff Hartman wrote:
Ideally, freshly chilled coolant should be pumped from the bottom radiator outlet directly to the cylinder head(s), where the cooler water jacket will lower the octane number requirement of the engine by helping keep charge gases below auto-ignition temperature as combustion proceeds. From there, partially warmed coolant should flow downward into the block to cool the cylinders, which will make more power when running hotter due to reduced quenching of combustion gases. In this case, hot water exits the block through a thermostat housing for the return to the radiator inlet in the top tank.

Mr. Hartman subsequently references the Chevy LT1 engine that came from the factory with a reverse flow configuration. There is also a link in a related thread with a lot more detail on the LT1 setup.

Given the dual advantage of superior cooling to the head, as well as the reduced quenching effect in the cylinders, this seems like a no-brainer. Of course, on a stock vehicle, this is a bit more challenging to execute due to the water pump, thermostat, and heater control issues that would need to be addressed. On a "maximum effort" engine, happily, none of those are constraints. Also noteworthy that at least one of the GTR variants were configured with reverse flow, albeit with a special mechanical pump.
_________________
75 Fiat X1/9 | 80 US 931 '941' | 78 Poli-Form
Back to top
View user's profile Send private message
tuurbo



Joined: 09 Aug 2007
Posts: 1446
Location: East Windsor, New Jersey

PostPosted: Sun May 31, 2009 10:24 am    Post subject: Reply with quote

Very cool idea - so really, given the heat of these heads, Porsche should've engineered it this way from the start.
_________________
1980 924 turbo, MSD, Meth. Inj, otherwise stock.
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15510
Location: Woodstock IL

PostPosted: Sun May 31, 2009 1:58 pm    Post subject: Reply with quote

Well, on a street car, it complicates things a bit. First of all, you'd need a dual t-stat like what is mentioned in that LT1 thread. Then, you'd have to re-engineer how the water pump works, and then you'd have to pull the heater source post-head. None of these are insurmountable on a new engineering project, but given that the 924 was a parts bin car to start with, you can guess it probably didn't get much if any consideration.
_________________
75 Fiat X1/9 | 80 US 931 '941' | 78 Poli-Form
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15510
Location: Woodstock IL

PostPosted: Tue Jun 02, 2009 8:37 am    Post subject: Reply with quote

OK, here are photos of my modified rear water flange:



And for clarity, here are photos of the modified water pump housing (be sure you don't miss welding up the weep hole!!!):


And finally, a photo of the modified lower t-stat housing:


The cool thing is, the upper t-stat housing from the 931 and the 924NA can be interchanged...one points to the front and the other toward the LHS fender, so depending on how everything else comes together with the intercooler, low pressure duct, radiator, and intake, I can select the most convenient part for my needs
_________________
75 Fiat X1/9 | 80 US 931 '941' | 78 Poli-Form


Last edited by ideola on Sat Jul 18, 2009 12:15 am; edited 1 time in total
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15510
Location: Woodstock IL

PostPosted: Wed Jun 03, 2009 12:04 am    Post subject: Reply with quote

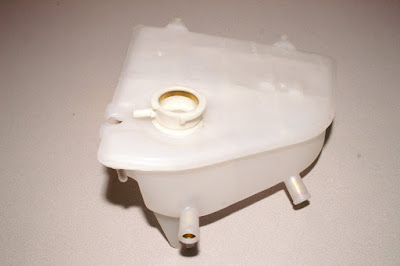

Here is a nice, brand new 951-style coolant reservoir. Picked this up a while ago on a Rennlist group buy.

_________________
75 Fiat X1/9 | 80 US 931 '941' | 78 Poli-Form


Last edited by ideola on Sat Jul 18, 2009 12:16 am; edited 1 time in total
Back to top
View user's profile Send private message
ivan



Joined: 12 May 2009
Posts: 14
Location: kalamazoo, michigan

PostPosted: Thu Jun 18, 2009 8:56 am    Post subject: Reply with quote

I've got a slightly off topic question, though it does involve cooling.

does anyone have any cheap solutions for a replacement expansion tank on a (future) street car?
So far my best solution at work (I work at a parts store) has been buy a pressurized expansion tank (which is like $30) and figure out a spot for mounting it....

...or the slightly more expensive option which is buy a new half sized radiator (I.E. mid 90's honda which is about $120) and just make a bracket so i have a new component that can rule out for failures, and i've already got a overflow tank laying around that i could easily mount.
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15510
Location: Woodstock IL

PostPosted: Thu Jun 18, 2009 9:10 am    Post subject: Reply with quote

Just buy a second hand 944 expansion tank, they routinely pop up on eBay. Come to think of it, I might have a spare I'd be willing to sell you. The 944 unit looks just like the above photo, but without the extra small port (which is the return line from the 951's water-cooled turbo) and it mounts directly on the fender rail. If you work at a parts store, you should have no trouble cobbling together a hose configuration that will adapt the stock 924 hoses to reach over that far.
_________________
75 Fiat X1/9 | 80 US 931 '941' | 78 Poli-Form
Back to top
View user's profile Send private message
pocketscience



Joined: 23 Apr 2006
Posts: 1650
Location: Sydney, Australia... mate!

PostPosted: Thu Jun 18, 2009 10:38 am    Post subject: Reply with quote

+1 to what Dan says.

I bought a brand-new 944 style for ~$80 I recall. The new hose layout is easy-peasy...


G.
_________________
Whoever said you can't buy happiness forgot about Porsche!
81 924 N/A, GTS lights, Saratoga, interior, headers, Integral cam, EFI (sold)
95 993
69 911
Back to top
View user's profile Send private message Visit poster's website
Karlio



Joined: 17 Nov 2019
Posts: 15
Location: UK

PostPosted: Thu Nov 05, 2020 10:46 am    Post subject: Reply with quote

ideola wrote:
I'm taking a closer look at reversing the coolant flow through the head first, based on some info posted here, and also in the thermal management section of Jeff Hartman's Turbocharging Performance Handbook. Bearing in mind the following characteristics:
  • modified water pump housing
  • modified thermostat housing (NO thermostat)
  • modified rear water flange
  • modified cross-over pipe
  • heater-delete configuration (no heater core or associated plumbing)
  • Davies-Craig electric water pumps (EWP115 for main coolant circuit, EBP for turbo coolant circuit)
  • Water pump cycling will be controlled by the ECU
  • 951 style coolant reservoir
  • water-cooled bearing housing on the turbo

...here is the proposed reverse-flow configuration:

Any reason this won't work???


Where in the circuit would an ecu controlled temperature probe be installed?
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15510
Location: Woodstock IL

PostPosted: Thu Nov 05, 2020 10:48 am    Post subject: Reply with quote

hot side of the head.
